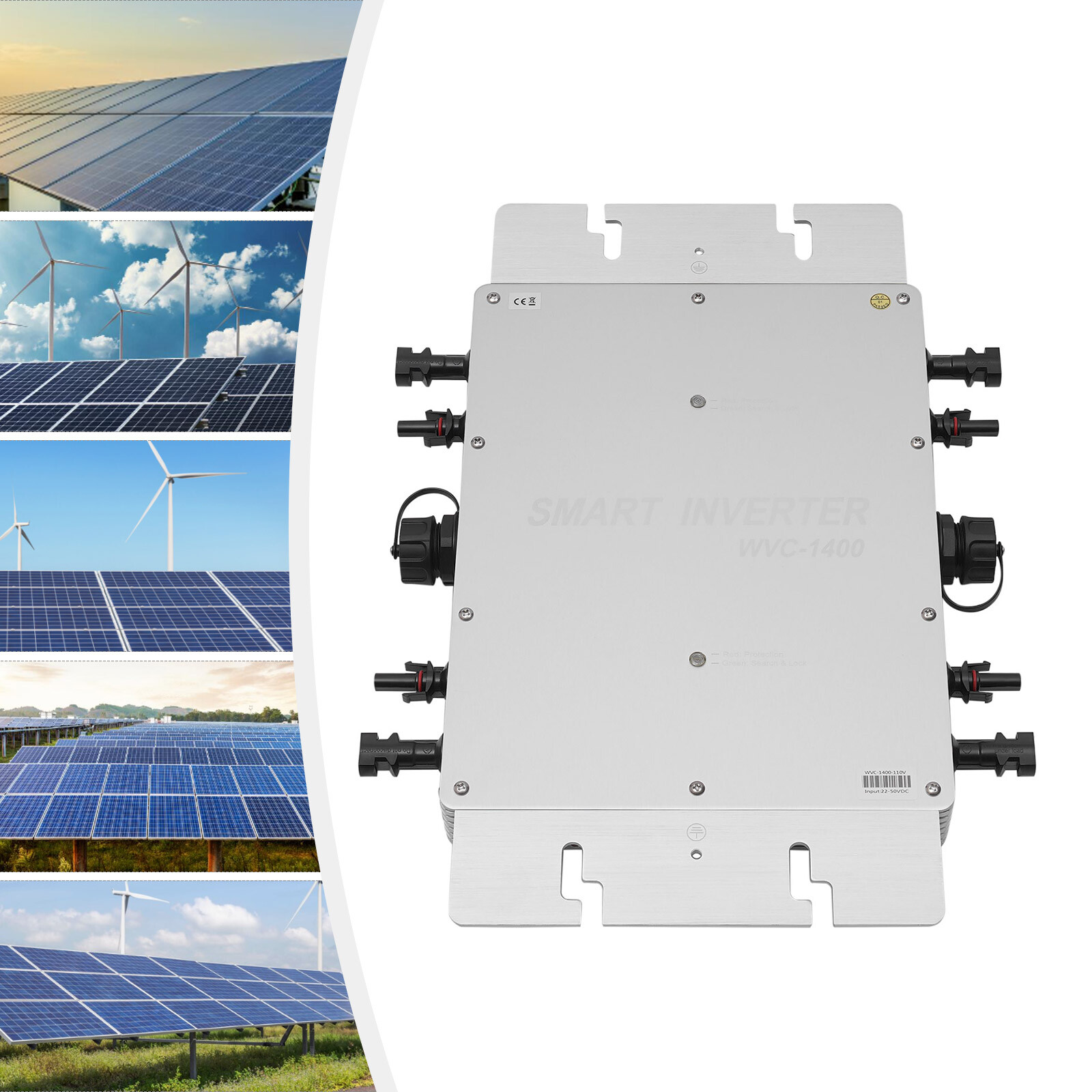

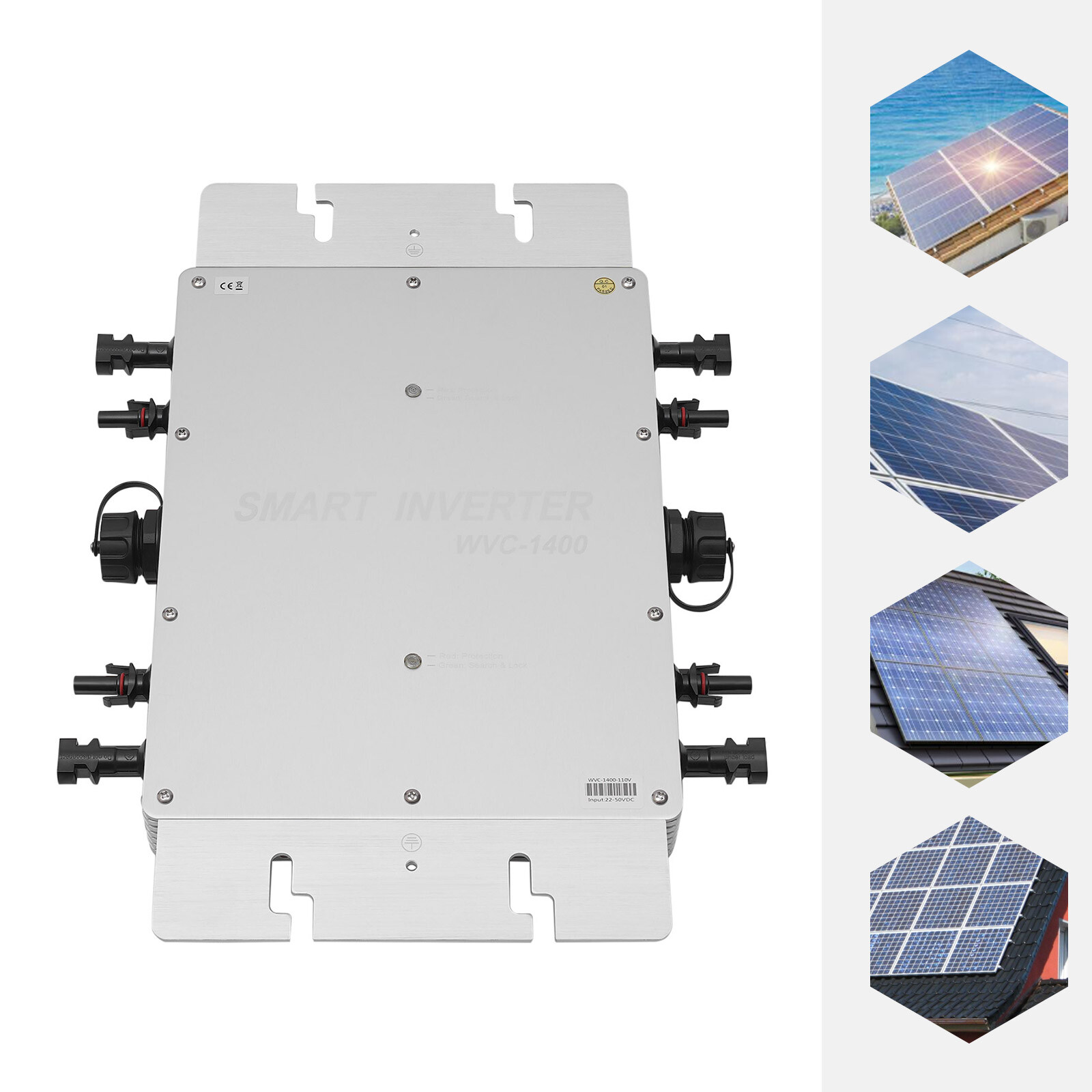

1400W Solar Micro Inverter Grid Tie Mppt Pure Sine Wave Dc To Ac 110v Waterproof
Specifications
| Country Of Origin | China |
| Brand | UnbrandedUnbranded |
| Power Source | Solar |
| Type | Charger/Inverter |
| Model | WVC-1400W |
| Application | Home/Garden |
| Voltage | 110V |
| Power | 1400W |
| Current Rating | 22-50V |
| Resistance Properties | Waterproof |
| System Configuration | Grid-Tie |
| Current Output | 110VAC |
| Material | Aluminium Alloy |
| Plug Type | US Standard |
| Maximum Input DC Voltage | 54V |
| Peak Power Tracking Voltage | 22-45V |
| Operating Voltage Range | 17-50V |
| Min/Max Start-up Voltage | 22-50V |
| Maximum DC Short Circuit Current | 80A |
| Maximum Input Operating Current | 58A |
| Output Peak Power | 1400watt |
| Rated Output Power | 1350watt |
| Rated Output Current | 12.8A |
| Rated Voltage Range | 80-160VAC |
| Rated Frequency Range | 57-62.5Hz |
| Power Factor | ＞99％ |
| Static MPPT Efficiency | 99.5% |
| Maximum Output Efficiency | 91.2% |
| Waterproof Rating | IP65 |
| Cooling Method | Self-cooling |
| Communication Mode | Power Line Carrier |
| Gross Weight | 4.2kg/9.26lbs |
| Net Weight | 3kg/6.61lbs |
Specification Model: WVC-1400W Color: Silver Material: Aluminium Alloy Power: 1400W Voltage: 110V Plug Type: US Standard Maximum Input DC Voltage: 54V Peak Power Tracking Voltage: 22-45V Operating Voltage Range: 17-50V Min/Max Start-up Voltage: 22-50V Maximum DC Short Circuit Current: 80A Maximum Input Operating Current: 58A Output Peak Power: 1400watt Rated Output Power: 1350watt Rated Output Current: 12.8A Rated Voltage Range: 80-160VAC Rated Frequency Range: 57-62.5Hz Power Factor: ＞99％ Number of Circuit Connections Per String: 3 Static MPPT Efficiency: 99.5% Maximum Output Efficiency: 91.2% Night Time Power Loss: <1W Total Flow Distortion: <5% Operating Temperature Range: ﹣40℃~60℃/﹣40℉~140℉ Waterproof Rating: IP65 Cooling Method: Self-cooling Communication Mo.
