CPS SCH125KTL-AIO/US-600 125kW 1500Vdc String Inverter
USD 1250.00 USD

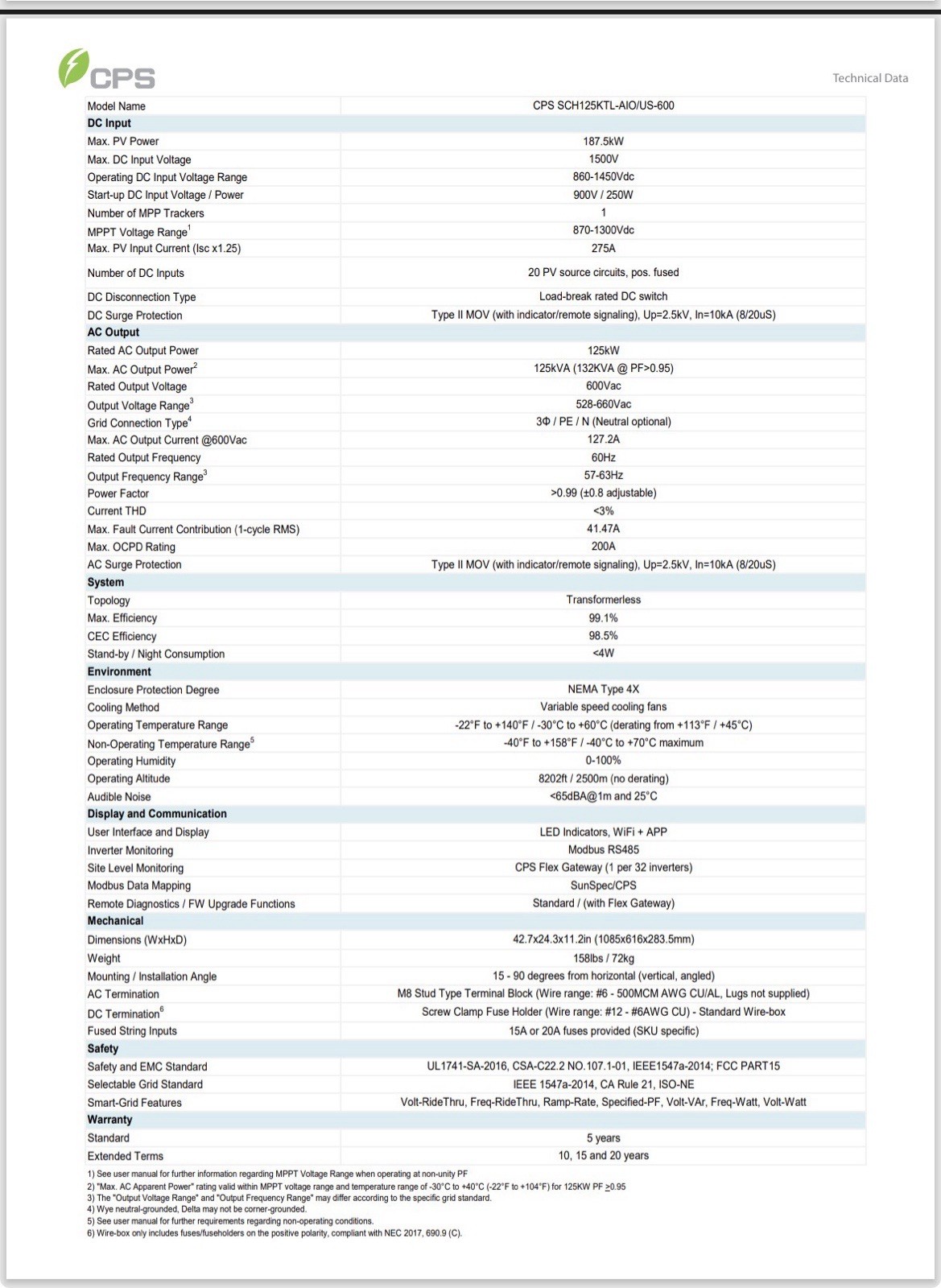

Specifications
| System Configuration | Grid-Tie |
| Power Source | Solar |
| Inverter Technology | String |
| Color | White |
| Wattage | 125 kW |
| Current Rating | 125-20A |
| Material | Copper, Aluminum |
| MPN | SCH125KTL-AIO/US-600 |
| Brand | CPS |
| Type | Inverter |
| Current Type | DC/AC |
| Voltage | 1500 Vdc |
| Model | SCH125KTL-AIO/US-600 |
| Recommended Environment | Outdoor |
| Resistance Properties | Tough enclosure |
| Power | 125 kW |
The 125kW high power CPS three phase string inverter is designed for ground mount applications. The unit is a high performance, advanced and reliable inverter designed specifically for the North American environment and grid. High efficiency at 99.1% peak and 98.5% CEC, wide operating voltages, broad temperature ranges and a NEMA Type 4X enclosure enable this inverter platform to operate at high performance across many applications. The CPS 125kW product ships with a non-separable Standard Wire-box, fully integrated with a DC disconnect switch. The Standard Wire-box inlcudes touch safe positive polarity fusing for up to 20 strings.
